Why does it display white screen after removing SysTick_Handler?

Created in October 06, 2025

2025

What happens if there is no stm32f4xx_it.c?

If you tested the program without stm32f4xx_it.c, you won’t get error, but you will see only white screen. Why?

In my stm32f4xx_it.c, there is only one function with actual declaration:



1
2
3
4


void SysTick_Handler(void)
{
  HAL_IncTick();
}

Now, try building and uploading the program with stm32f4xx_it.c but the SysTick_Handler part commented out. Although stm32f4xx_it.c exists, it still displays white screen. Now we know SysTick_Handler is the matter.

What does SysTick_Handler do?

In the code above, SysTick_Handler does one job: call HAL_IncTick(). HAL_IncTick increments a global variable “uwTick” used as application time base. Without it, it will somehow block display on screen.

The HAL and many library functions rely on the SysTick interrupt for the system tick (HAL tick). In the HAL implementation, SysTick increments the millisecond counter via HAL_IncTick() and this is what makes HAL_Delay() and other timing functions work.

In short, SysTick_Handler() is invoked every time HAL_Delay() is called.

Let’s look at main.c, line 249:



1
2
3
4
5
6
7
8
9


// Line 249
void LCD_Init(void)
{
    HAL_Delay(120);

    // Software reset
    LCD_WriteCommand(0x01);
    HAL_Delay(120);
    // ...

And in line 74:



1
2
3
4
5
6
7
8
9
10
11
12
13
14


// line 74
while (1) {
	// LED blink pattern depends on clock source
	if (clock_source == 0) {
		// HSE: fast double blink
		HAL_GPIO_WritePin(GPIOG, GPIO_PIN_13, GPIO_PIN_SET);
		HAL_Delay(100);
		HAL_GPIO_WritePin(GPIOG, GPIO_PIN_13, GPIO_PIN_RESET);
		HAL_Delay(100);
		HAL_GPIO_WritePin(GPIOG, GPIO_PIN_13, GPIO_PIN_SET);
		HAL_Delay(100);
		HAL_GPIO_WritePin(GPIOG, GPIO_PIN_13, GPIO_PIN_RESET);
		HAL_Delay(700);
		// ...

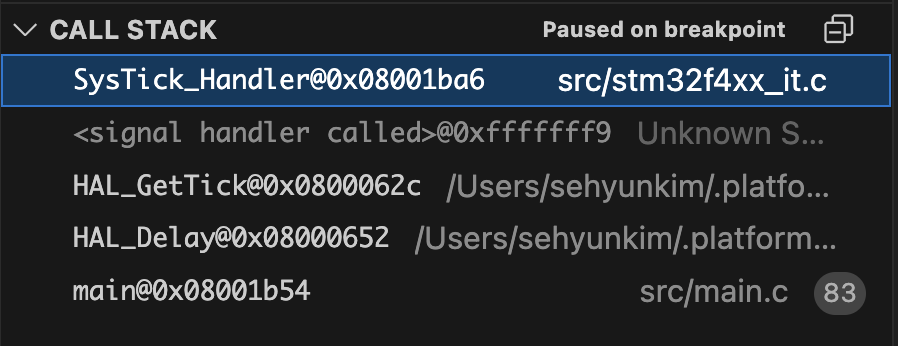

As seen, HAL_Delay() is everywhere. And if you debug it, you can see in the call stack:

that somehow SysTick_Handler is invoked by HAL_Delay.

Now it’s more clear. If SysTick_Handler not defined, it will prevent HAL_Delay from operating normally, and that’s probably why we can only see the blank screen. But how does it work in detail? Or before, if SysTick_Handler plays such a crucial role, how did it even build and run the program without it?

Startup File has a weak symbol to SysTick_Handler

Let’s go into ~/.platformio/packages/framework-cmsis-stm32f4/Source/Templates/gcc. There is a file named startup_stm32f429xx.s.

In line 143:

.word SysTick_Handler

And in line 272-273:

   .weak      SysTick_Handler
   .thumb_set SysTick_Handler,Default_Handler
  • Line 272: places the value (address) of the symobl SysTick_Handler in the vector table.
  • Line 273: SysTick_Handler will be resolved to a weak alias “Default_Handler”.

Thanks to this startup file, the program does not return error even if there is no SysTick_Handler explicitly defined by user. It will instead implicitly link SysTick_Handler to a weak alias, which is Default_Handler. What does Default_Handler do?

In line 112 of the same startup file:

Default_Handler:
Infinite_Loop:
  b  Infinite_Loop
  .size  Default_Handler, .-Default_Handler

It runs an infinite loop. Now everything seems clear!

When stm32f4xx_it.c was removed, there was no explicit SysTick_Handler defined, thus the compiler linked SysTick_Handler to its weak alias Default_Handler, and Default_Handler ran an infinite loop, which made the program stuck in HAL_Delay() forever.

Now, when you define your own SysTick_Handler, the program will refer to the strong link of SysTick_Handler and increment tick correctly. On the other hand, if you don’t define it, it won’t return any compile error because it refers to the weak link of SysTick_Handler, which is aliased to Default_Handler, but Default_Handler does not do anything except infinitely running a loop. That is why you only see blank white screen.

Summary

  1. When you define your own SysTick_Handler, the program will refer to the strong link of SysTick_Handler and increment tick correctly.
  2. On the other hand, if you don’t define it, it won’t return any compile error because it refers to the weak link of SysTick_Handler, which is aliased to Default_Handler.
  3. But Default_Handler doesn’t do anything except infinitely running a loop. This is why you only see blank white screen.

What is startup file for?

The startup file sets up the vector table, which is an array of pointers. This table tells the processor the memory addresses of the interrupt service routines (ISRs) and exception handlers, enabling the MCU to respond to hardware interrupts and errors.

It’s worthwhile to read this article: https://microdigisoft.com/understanding-the-boot-process-and-startup-file/
